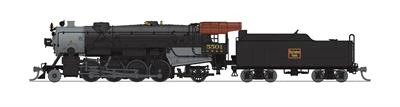

Broadway Limited Imports N 3973 USRA Heavy Mikado, Chicago Burlington And Quincy #5502

PARAGON 4 SOUND/DC/DCC EQUIPPED MODEL

This is BLI’s second production of the USRA Light and Heavy 2-8-2 designs in N scale, commonly called Heavy Mikados and Light Mikados! There were 233 original USRA Heavy 2-8-2’s built plus another 957 copies, covering 23 railroads. It was an extremely successful design. The USRA Heavy Mikados used pretty much the same running gear as the Light Mik’s, but the boilers were 10 inches larger in diameter and they had larger cylinders as well. Tractive effort was about 10% higher for the heavy 2-8-2’s.

As for the USRA Light Mikados, the USRA built 625 total, with 641 copies built after the USRA ended control. With copies, over 50 railroads used the USRA Light 2-8-2’s.

BLI’s models follow the original designs closely. Railroad specific variations are not modeled on these locomotives. In most instances we offer two locomotive numbers for each railroad, and we are offering a painted model (black) with no lettering.

Industry-leading Model Features:
Paragon4 Sound and Control System featuring ROLLING THUNDER
Integral Dual-Mode Decoder with Back EMF for Superb Slow Speed Operation in DC and DCC
Precision Drive Mechanism Engineered for Heavy Towing and Smooth Slow Speed Operation
All Wheel Electrical Pick-up
Die Cast Body with Die Cast Chassis for Maximum Tractive Effort
Premium Caliber Painting
Prototypically Accurate Paint Schemes and Road Numbers
Many Separately Applied Details such as Handrails, Grab Irons, Piping, Whistle, and Bell
Prototypical Headlight and Rear Light Operation
Prototypically Accurate Sounds for the USRA 2-8-2s
Operating Microtrains-compatible Couplers
Will Operate on Code 55, Code 70, and Code 80 Rail
Minimum Operating Radius: 9.75″

Broadway Limited Imports is proud to introduce Paragon4: The new benchmark for premium HO sound-equipped locomotives. These DC and DCC-Sound equipped locomotives feature the ALL-NEW Paragon4 sound and control system. Each Paragon4 locomotive comes with BLI’s own integral DCC Decoder factory installed. Paragon4 locomotives offer Dual Mode DC and DCC operation with superb back EMF motor control, improved DC motor control, built-in capacitor pack for more reliable electrical pick-up, industry best on-board sound with Rolling Thunder functionality, Pro Lighting Mode for prototypical light control, Switcher model for precise low speed control, recordable DCC operation for automated playback, and the same excellent detail level as Broadway Limited’s Paragon3 Series models.

Paragon4 Sound and Control System Features:
Operates in DC and DCC with improved DC speed control (use DCMaster for DC Sound)
Built-In extra capacitance to navigate imperfect track
Pro Lighting Mode offers individual control of all lights on model
Switcher Mode for precise low speed control
Record and Play Operation – Records and plays back sounds and movements once or repeatedly for automatic operation
High Resolution Audio
Quillable Horn for various whistle lengths and patterns
Choice of 3 selectable Horns
Alternate Whistle/Horn where applicable for locomotive with air horn and steam whistle – both the main whistle and alternate can be easily played
Adjustable bell ringing interval for faster or slower bell
Numerous user-mappable functions with available keys
Multiple realistic passenger and crew sounds play on command
Grade Crossing Automatic Signal
Automatic Forward/Reverse Signal
Prime Mover sound intensity varies with load
Individually adjustable sound volumes for each effect
EZ Reset Button for quick return to factory default settings
